Electrozirve
Electrozirve
Hp2440-1

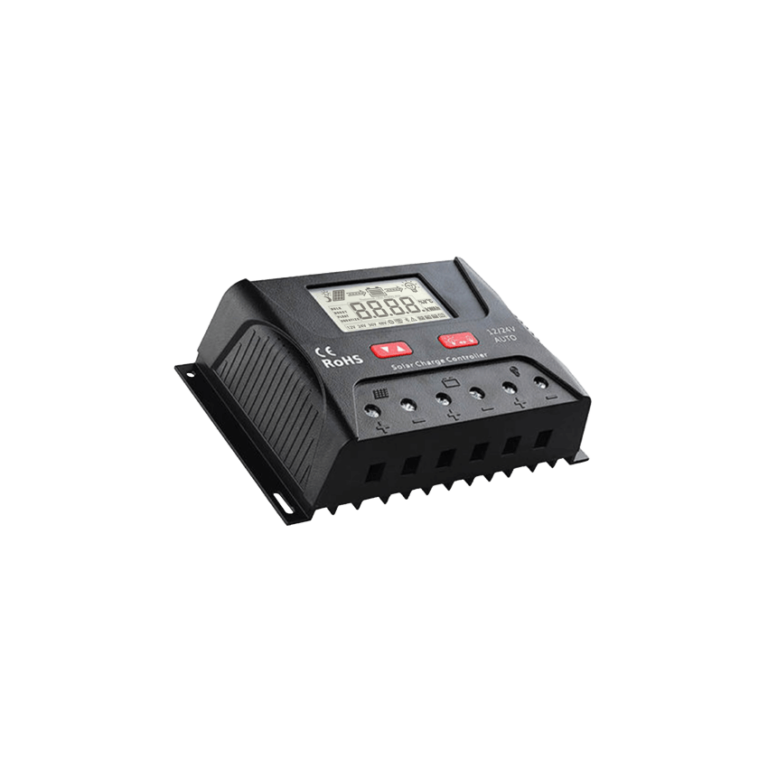

Electrozirve HP Series PWM Charge Controller

SKU :

The PWM charge controller monitors the battery voltage and charge status, preventing the battery from overcharging or overdischarging. By regulating the solar panel voltage in accordance with the battery voltage, the device extends the life of the battery and increases efficiency.

Read More

Original price was: $111.29.Current price is: $72.34.

Havale/EFT ile %5 anında indirim!
1500TL ve Üzeri Ücretsiz Kargo!
14 Gün İade Garantisi!
Features S.S.S. Documents Comments
ÖZELLİKLER

Energy Efficiency

PWM devices take energy efficiency to the top.

It charges your batteries in the most efficient way by drawing maximum power from your solar panels, thus converting every sunlight into valuable energy and guaranteeing the long-lasting performance of your system.

Natural Cooling Channel
With internal Display
3 Year Warranty
With All Battery Types
Works Compatibly
Natural Cooling Channel

Natural cooling channel increases performance and extends life by dissipating heat effectively.

With internal Display

The built-in screen instantly shows the device’s operating status, energy production and system data.

It provides more effective monitoring and management by providing fast and accurate information.

3 Year Warranty

The 3-year warranty ensures the longevity of your product and offers you additional assurance.

It provides a comfortable usage experience by providing comprehensive support in case of possible problems.

With All Battery Types
Works Compatibly

It works compatible with all battery types and offers flexible use with various energy sources.

This feature allows your device to work smoothly with different battery options, thus ensuring broad compatibility and ease of use.

ÖZELLİKLER

Working Principle

PWM charge controllers intelligently manage the energy from solar panels with Pulse Width Modulation (PWM) technology.

This method harmonizes the DC voltage with the battery voltage, preventing overcharging and allowing batteries to store energy efficiently and safely.

Best sellers

Sık Sorulan Sorular

  • What is the Difference Between MPPT and PWM?

    + -

    MPPT (Maximum Power Point Tracking) and PWM (Pulse Width Modulation) are two different types of solar charge controllers, and both are used to direct energy from solar panels to batteries. However, there are some important differences in terms of their working principles and efficiency:

    1. Working Principle
    MPPT: It constantly monitors the voltage and current values ​​of the solar panel and finds the voltage-current combination that will provide the highest power production. With this method, maximum efficiency is obtained from the panels and energy is transferred to the battery in the most appropriate way.
    PWM: It directly regulates the voltage difference between the solar panel and the battery and works with a fixed modulation frequency. This is a simpler method and is usually low-cost.
    2. Efficiency
    MPPT: It is generally more efficient because it can find the maximum power point of solar panels in different weather conditions and temperatures. MPPT collects more energy even in low sunlight.
    PWM: Its efficiency is lower than MPPT because energy losses occur when there is a voltage mismatch between the solar panel and the battery. These losses increase especially in cold weather or when the voltage received from the panels is higher than the battery.

    As a result, MPPT charge controllers represent a more advanced and efficient technology, while PWM devices can be used in low-cost and simple systems. If efficiency and long-term energy gain are important, MPPT is preferred

  • How to Choose the Capacity of a Solar Charge Controller?

    + -

    The capacity of the solar charge controller must be carefully selected to ensure the safe and efficient operation of the system. There are some basic factors to consider in this selection:

    1. Solar Panel Capacity (Watt)
    The total wattage of the solar panels affects the capacity of the charge controller. The charge controller must be able to manage the maximum power that the solar panels can produce.
    Especially in MPPT charge controllers, the panel voltage is usually higher than the battery voltage. Therefore, the device must be capable of managing the maximum voltage and current that the panels can produce.
    2. System Voltage (12V, 24V, 48V)
    The charge controller must be compatible with the voltage used in the system (such as 12V, 24V, 48V). These voltages are common in solar systems and the charge controller must operate efficiently at these voltages.

    The same solar panel group can be used at different voltages, so it is important that the charge controller can automatically detect the system voltage.

    Sample Calculation:

    If your solar panel system has the following features:

    Power: 500W solar panel (2 250W panels)
    Voltage: 12V system
    Maximum current: 500W / 12V = 41.67A

    In this case, the resulting value is rounded up to the next higher number to minimize risks. Thus, a charge controller with a capacity of 50A should be selected. This capacity will easily meet the maximum current load in the system.

    By considering these criteria, you can choose the most suitable charge controller for your system and achieve energy efficiency in the long term.

  • What are the payment methods?

    + -

    1. Bank Transfer and EFT:
    Our customers can make payments directly to our bank account via bank transfer or EFT on the payment screen. When your payment reaches our account, the product checkout process will be initiated immediately.

    2. Credit Card/Bank Card:
    Our customers can easily make their payments with credit card or bank card through our secure payment infrastructure.

  • Return and Refund Policy

    + -

    As Electrozirve Enerji, we aim to keep customer satisfaction at the highest level. In this context, we gladly evaluate your return and refund requests in accordance with the conditions specified below.

    Return Conditions:

    Products must be returned within 14 days from the date of delivery.
    The product to be returned must be in its original packaging, unused and suitable for resale.
    Returns of products damaged as a result of user error are not accepted.
    Before initiating the return process, you must contact us and receive approval for the return process.

    Return Process:

    After your return request is approved, the product must be delivered to us within 5 business days.
    After the product reaches us, our quality control process will be initiated and you will be informed within 7 business days.

    Refund Conditions:

    The refund will be made within 10 business days after the product is returned and checked.
    Refunds will be made using the original payment method.
    Shipping fees are covered by the customer. However, if the product is faulty or defective, the shipping fee will be covered by us.

    Support: For all your returns and refund requests, you can reach us at [email address/phone number]. Our customer service will assist you as soon as possible.

Electrozirve HP Series PWM Charge Controller Datasheet Download
